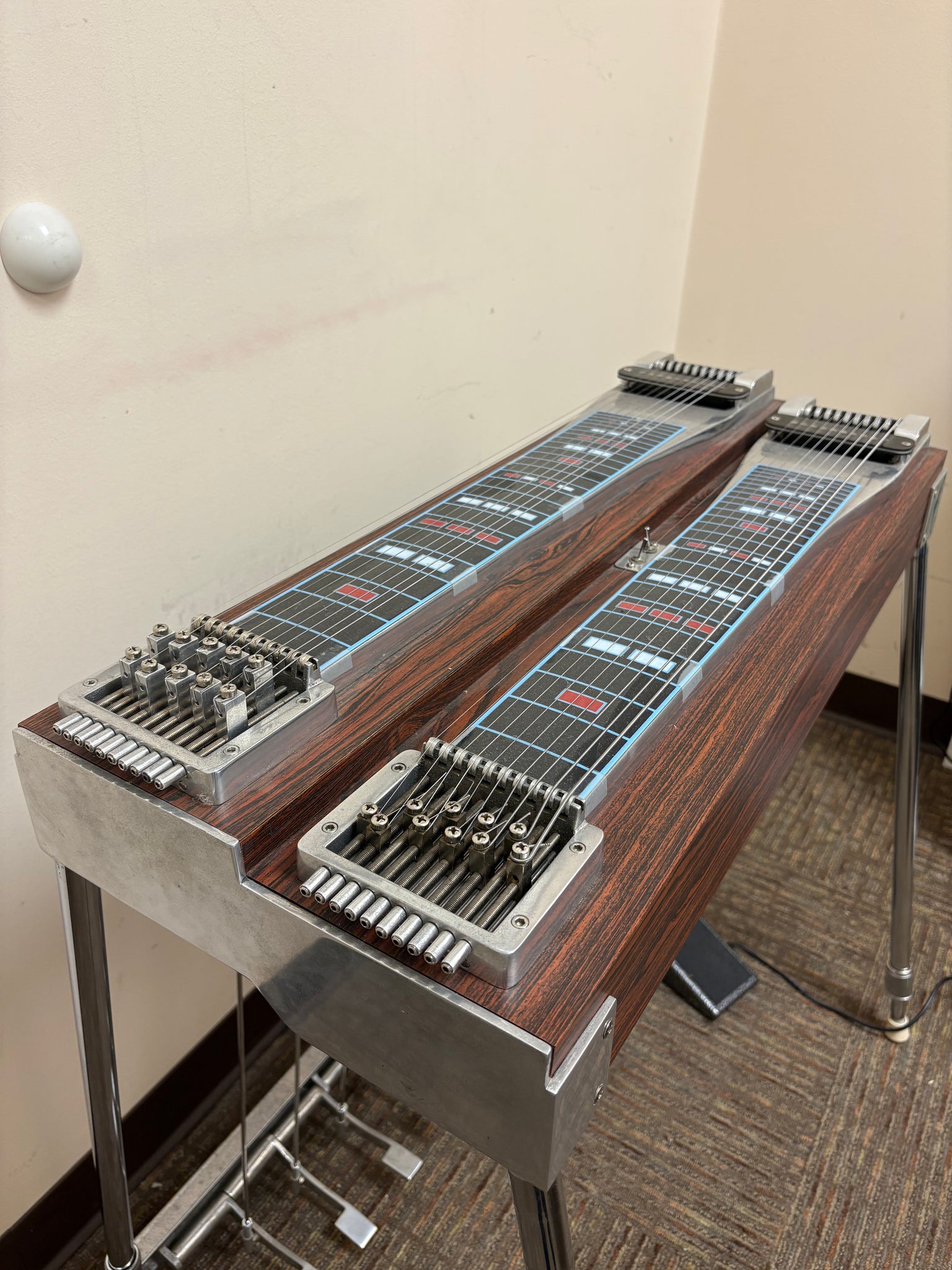

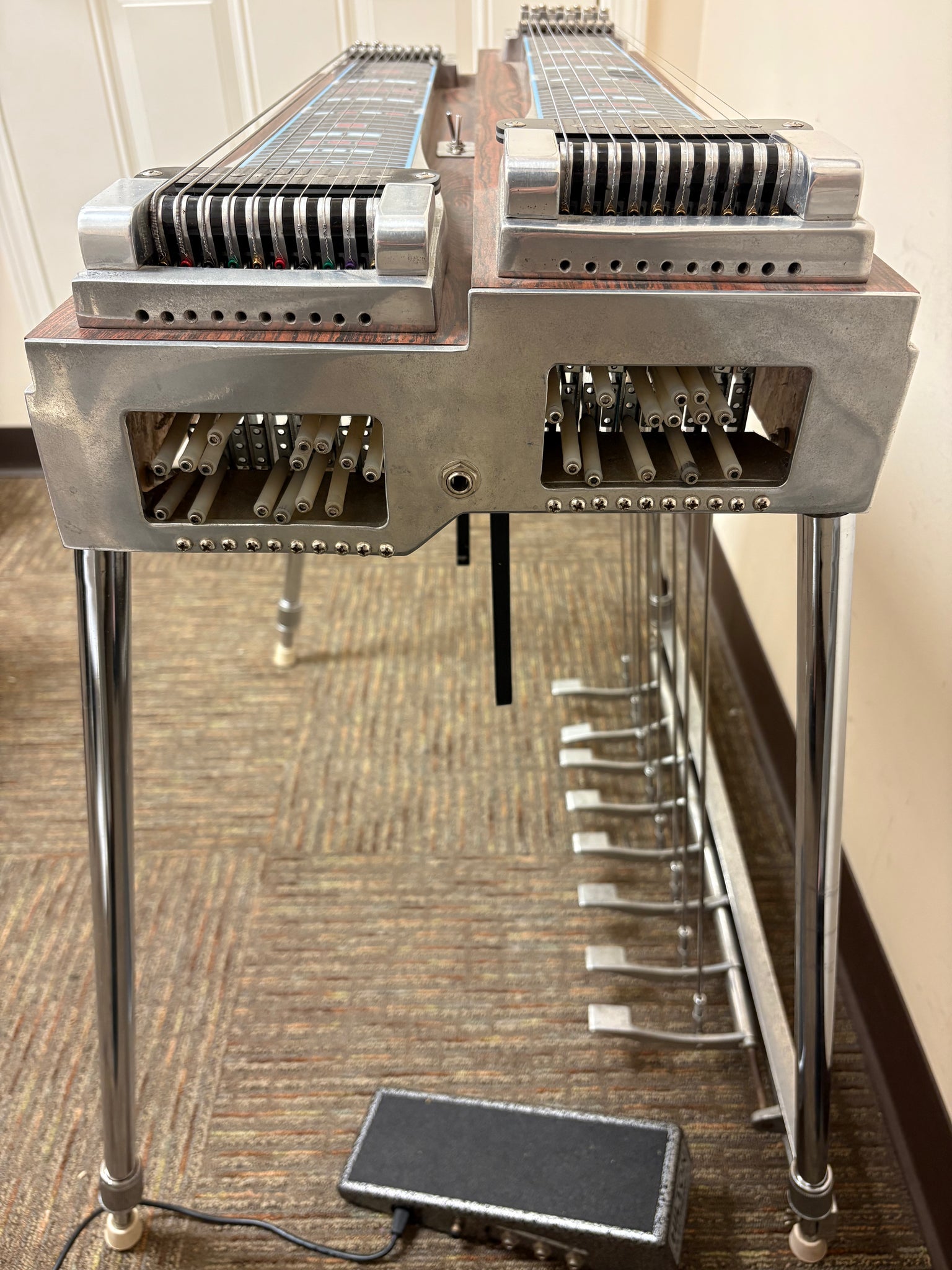

Williams D-10 8x4 Bill Rudolph 8-Pedal Steel Guitar Serial #15 1980

Williams D-10 8x4 Bill Rudolph 8-Pedal Steel Guitar Serial #15 1980

Condition: Mint

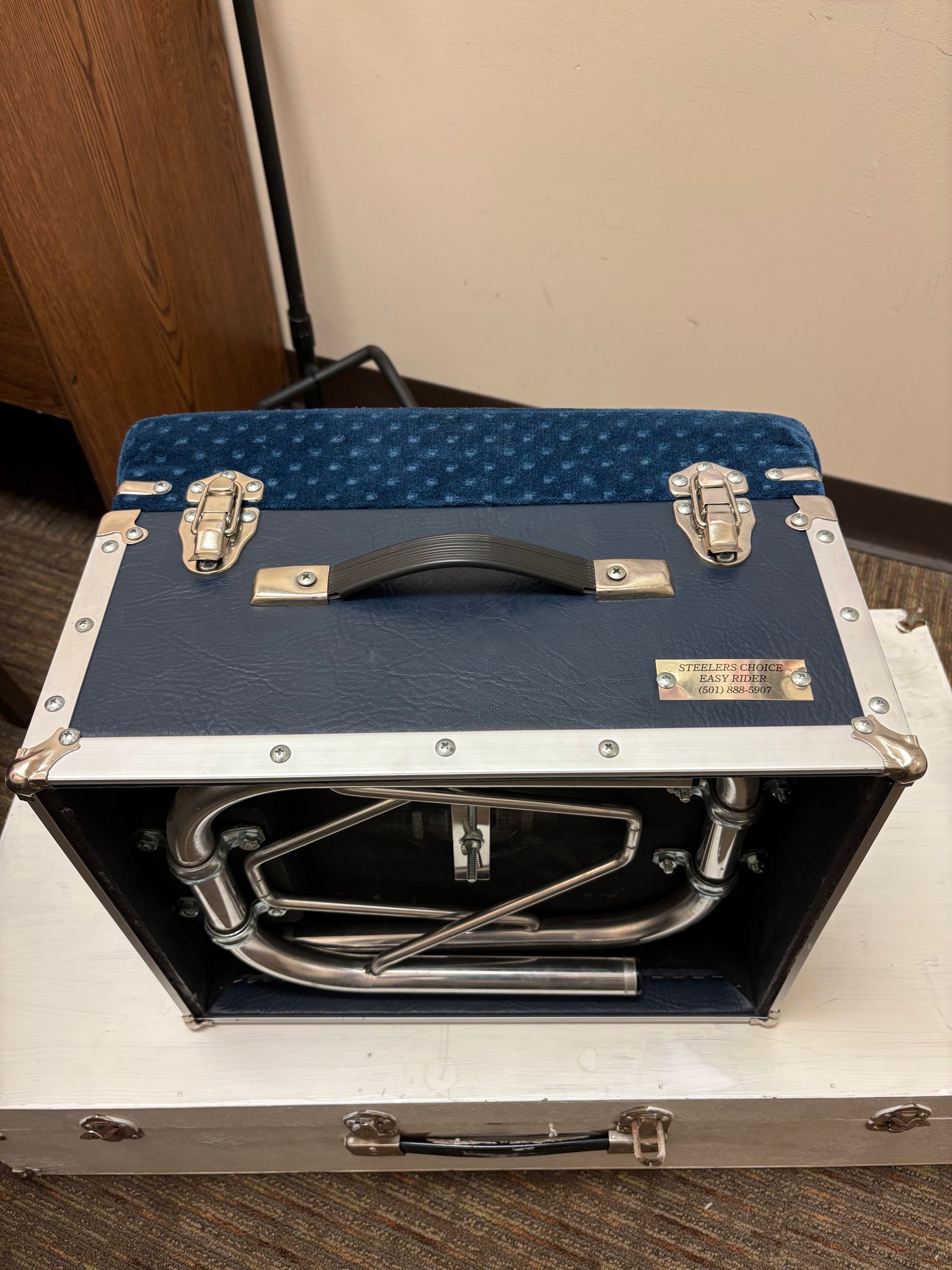

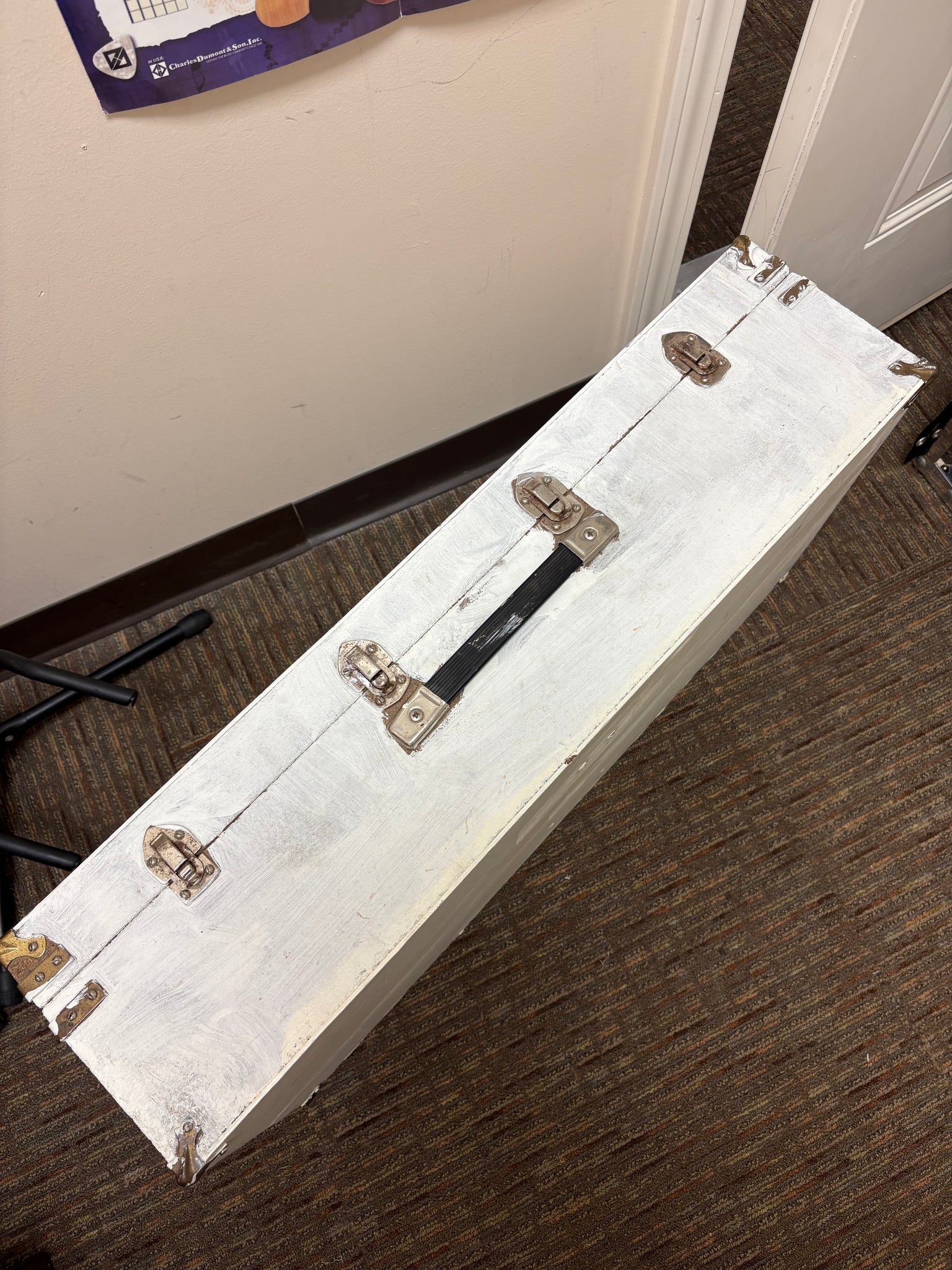

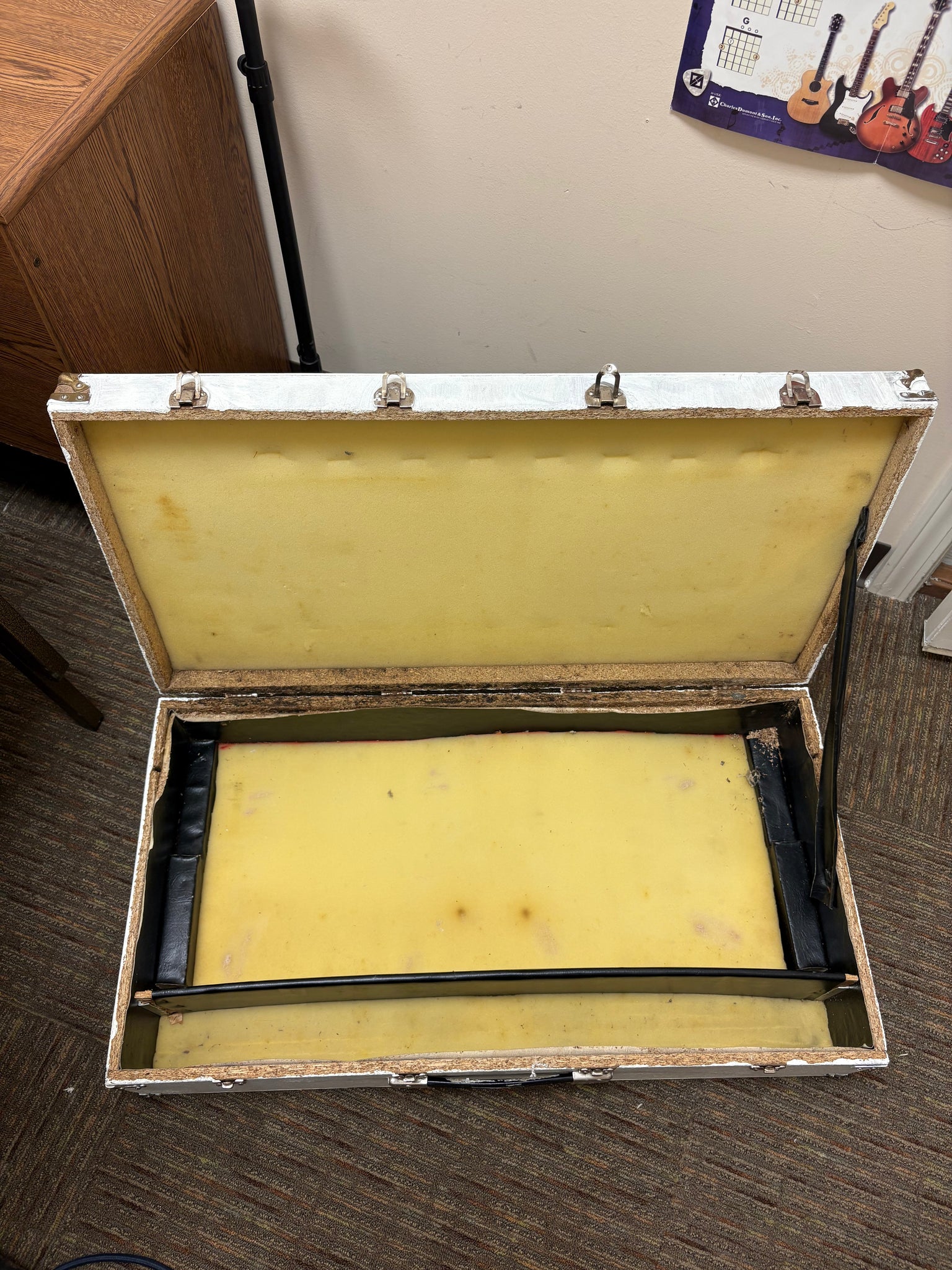

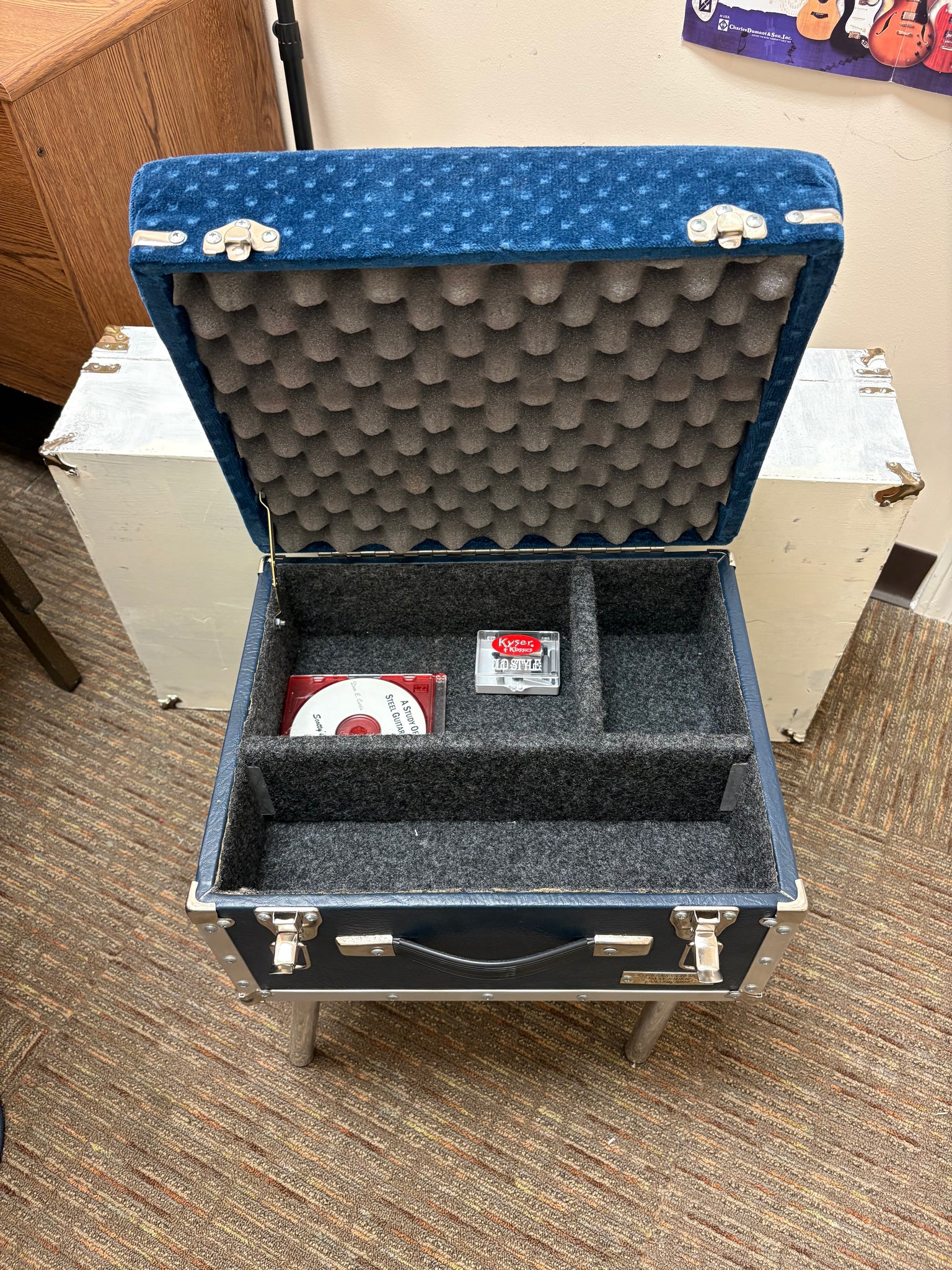

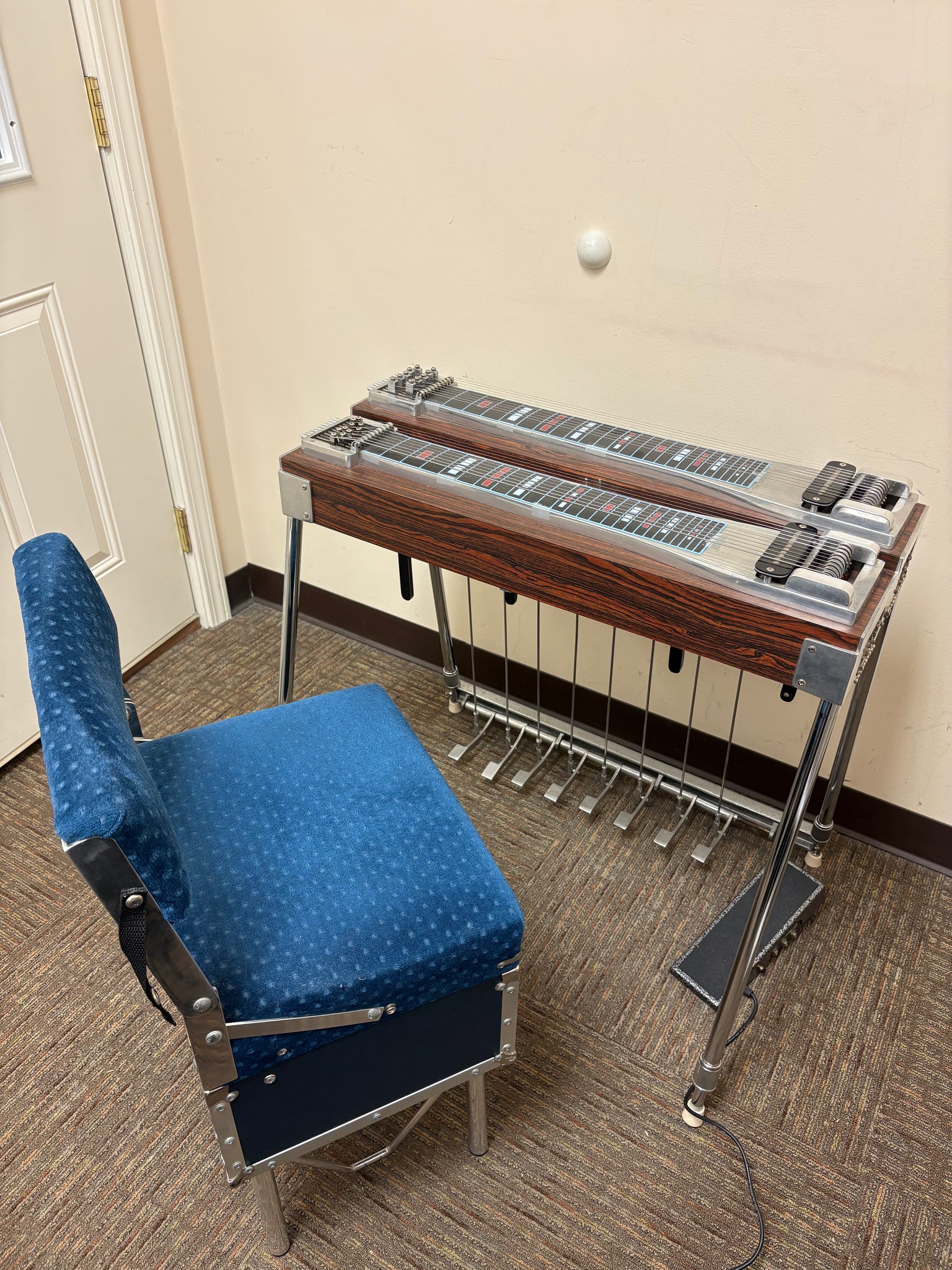

We have tested this pedal steel in full and all electronics, pedals and its functions look to work as expected. A steelers choice easy rider seat, travel case and leg bag are all included.

The E9 setup is:
ABC Emmons
LKL raises E’s
LKR lowers 6
RKL lowers E’s
RKR lowers 2nd whole step, 9th 1/2 step

(For reference, standard Emmons would have the LKL and RKL swapped). LKL means ‘left knee left’ meaning the left knee pushing left (similarly for the meanings of LKR, RKL, RKR)

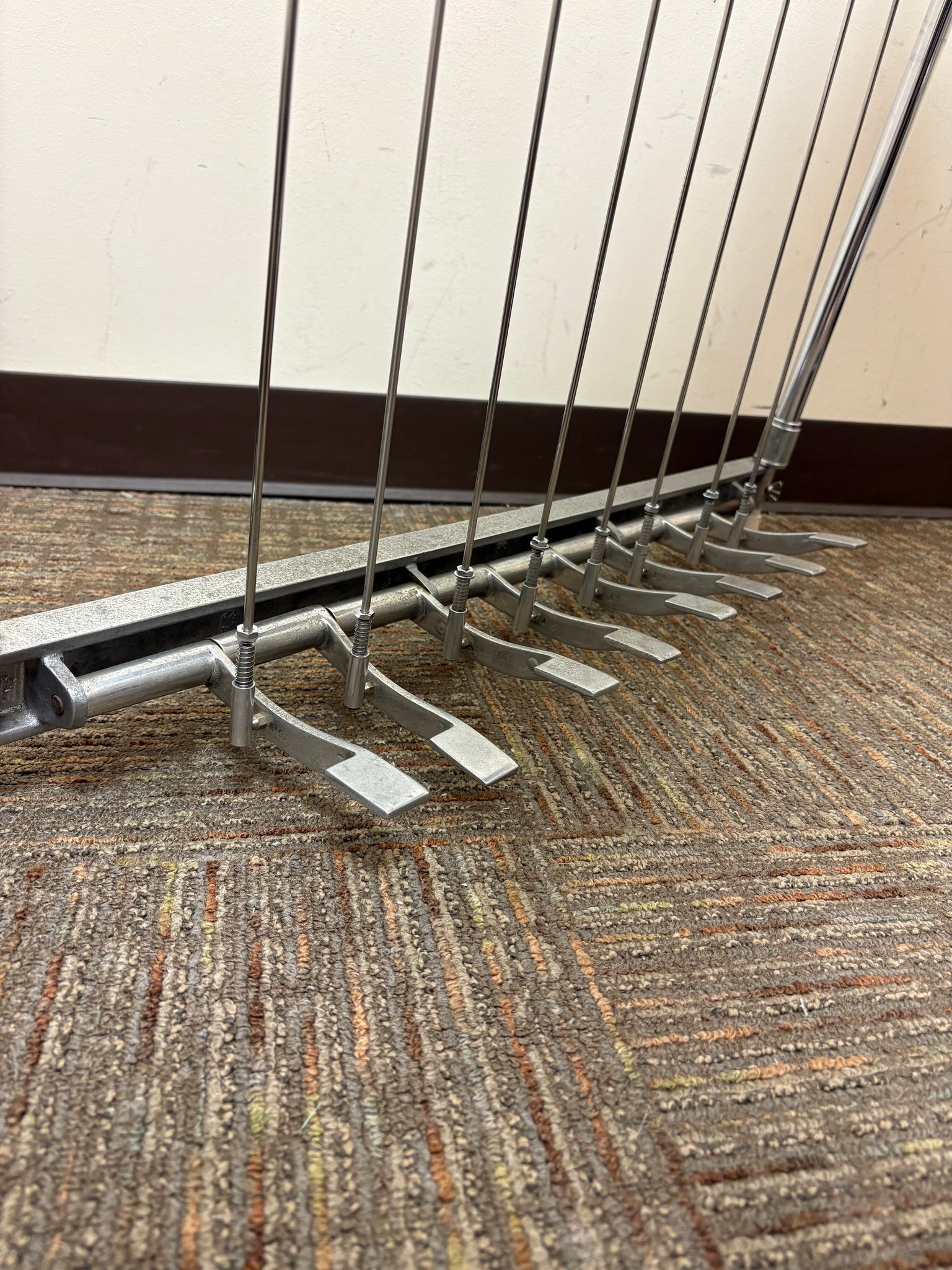

• 8 pedals and 5 knee levers

• Triple raise/lower universal changer
• Adjustable changer return springs
• Gauged string rollers
• Special alloy changer axle

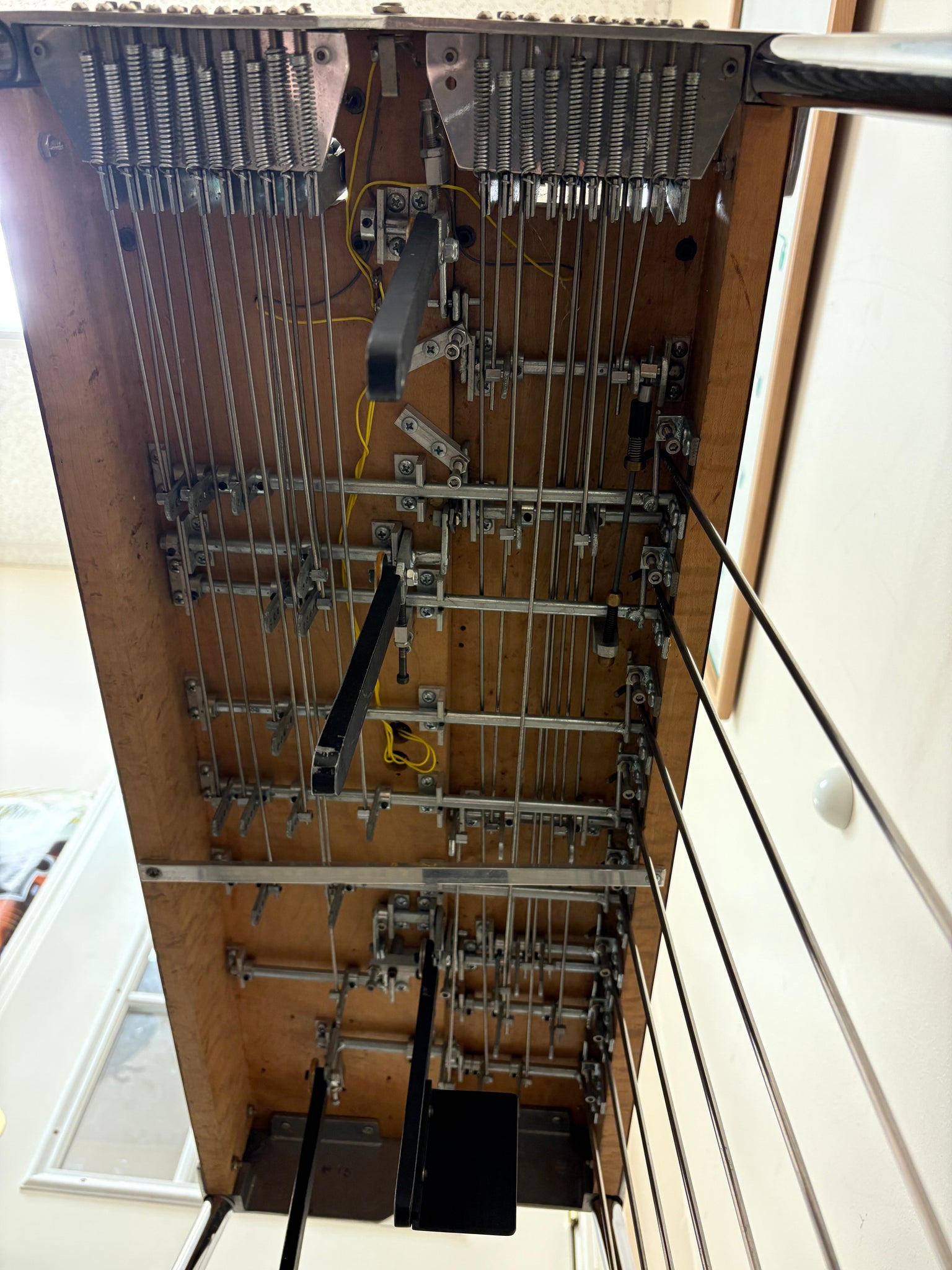

• Square undercarriage cross shafts mounted in Delrin bearings
• Quick change extruded bell cranks-no set screws
• Stainless steel undercarriage pulling rods
• Adjustable extruded knee levers
• Stainless steel adjustable legs
• Extruded pedals mounted in Delrin bearings for smooth pedal action
• Extruded pedal bar
• One Piece key head (Keyless)
• Quality case and leg bag included
• CNC Milled end plates and aluminum necks, polished to a mirror finish
• CNC Routered Bodies and wood necks

• Tunable splitter standard
• 36 Lbs./16.4 Kilos
