Rapco DB-100 Direct Box
Rapco DB-100 Direct Box
Rapco DB-100 Direct Box
Rapco DB-100 Direct Box
Rapco DB-100 Direct Box
Rapco DB-100 Direct Box

Rapco DB-100 Direct Box

 More payment options

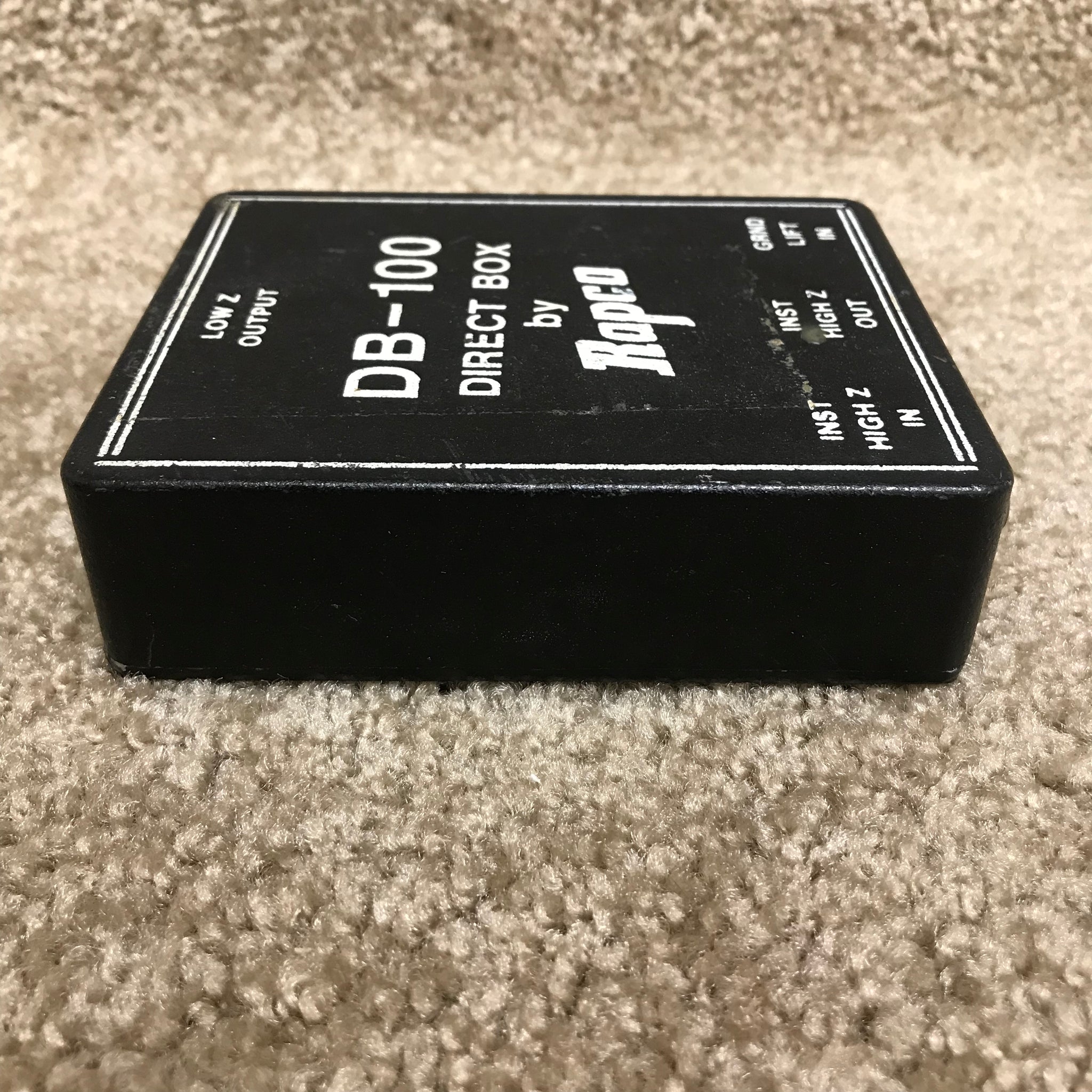

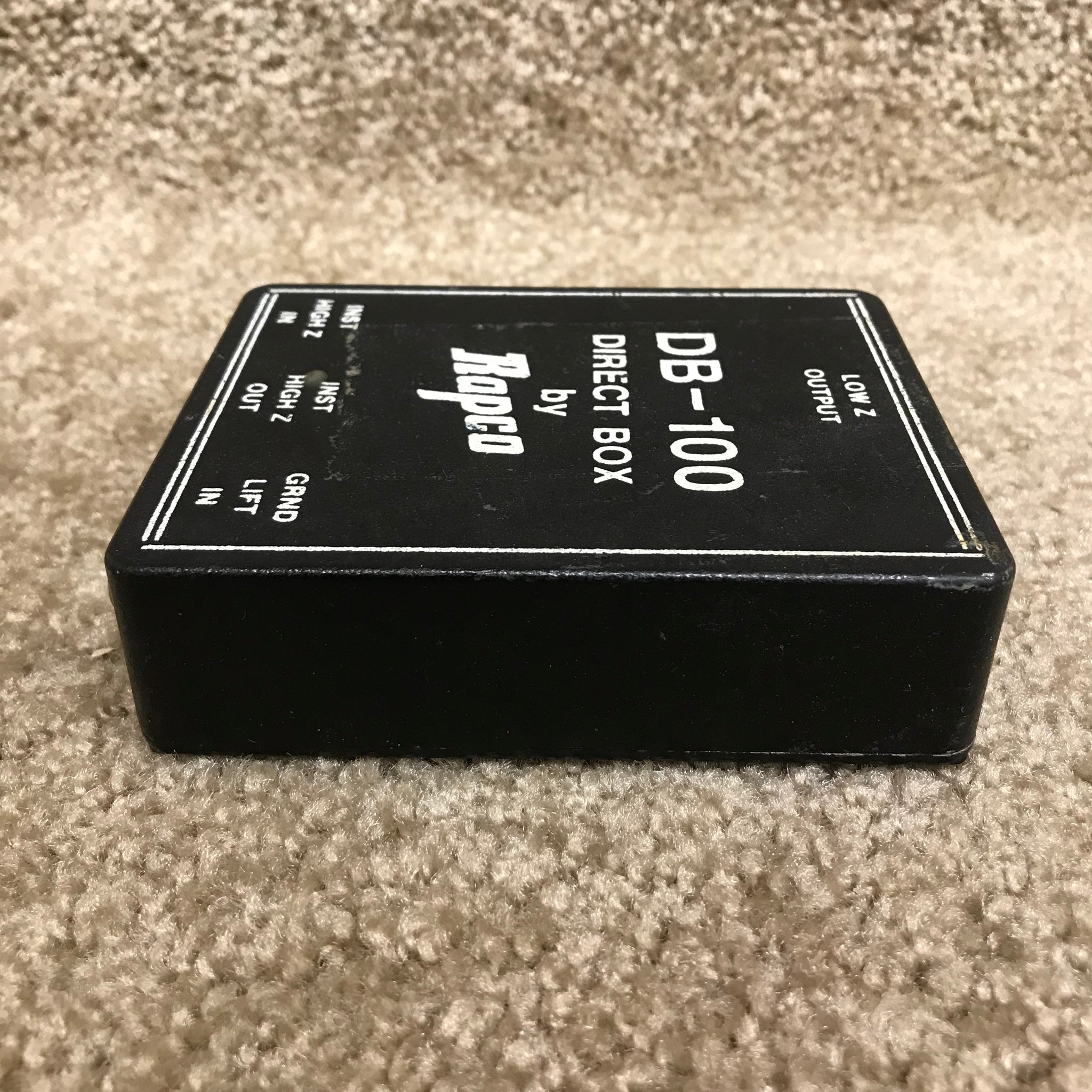

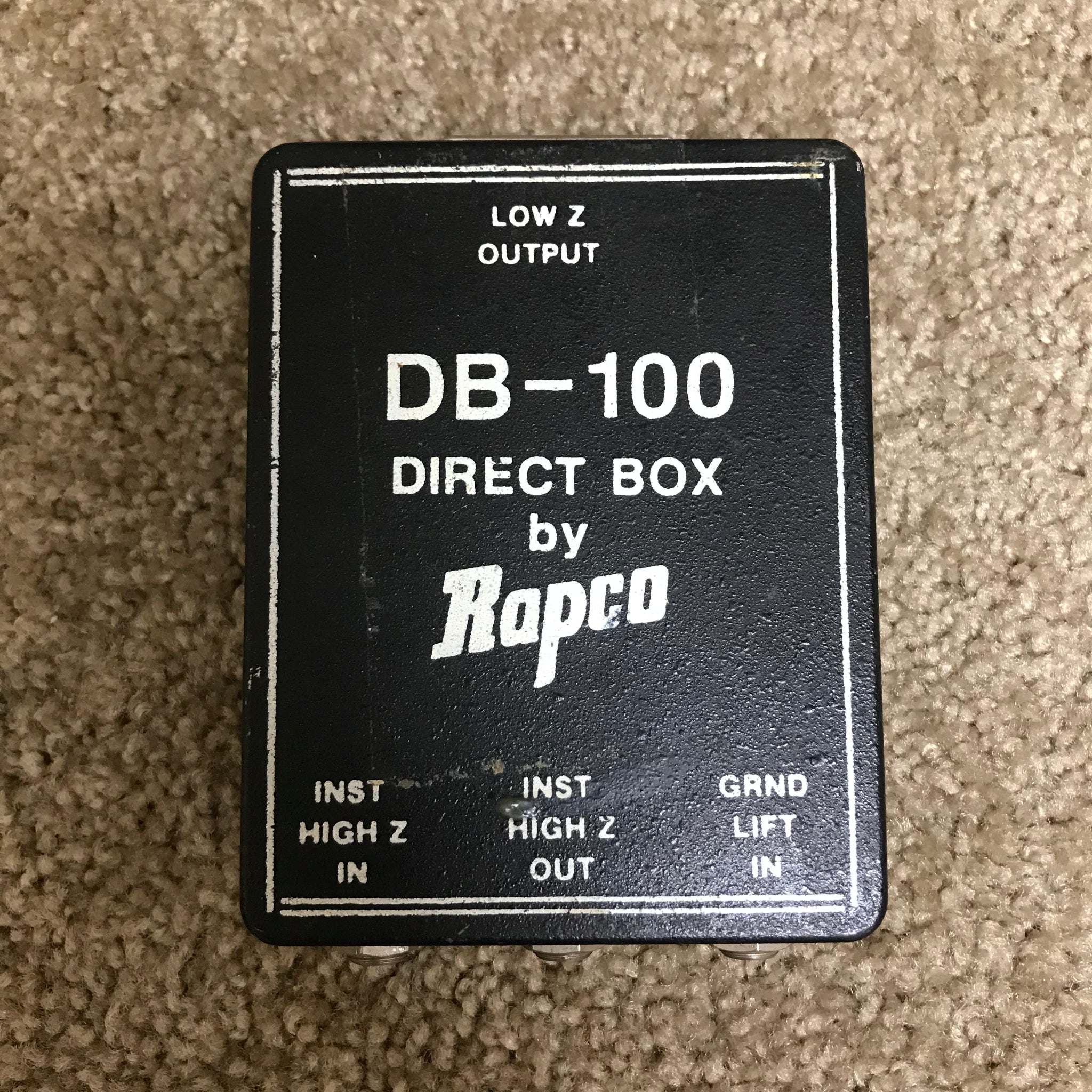

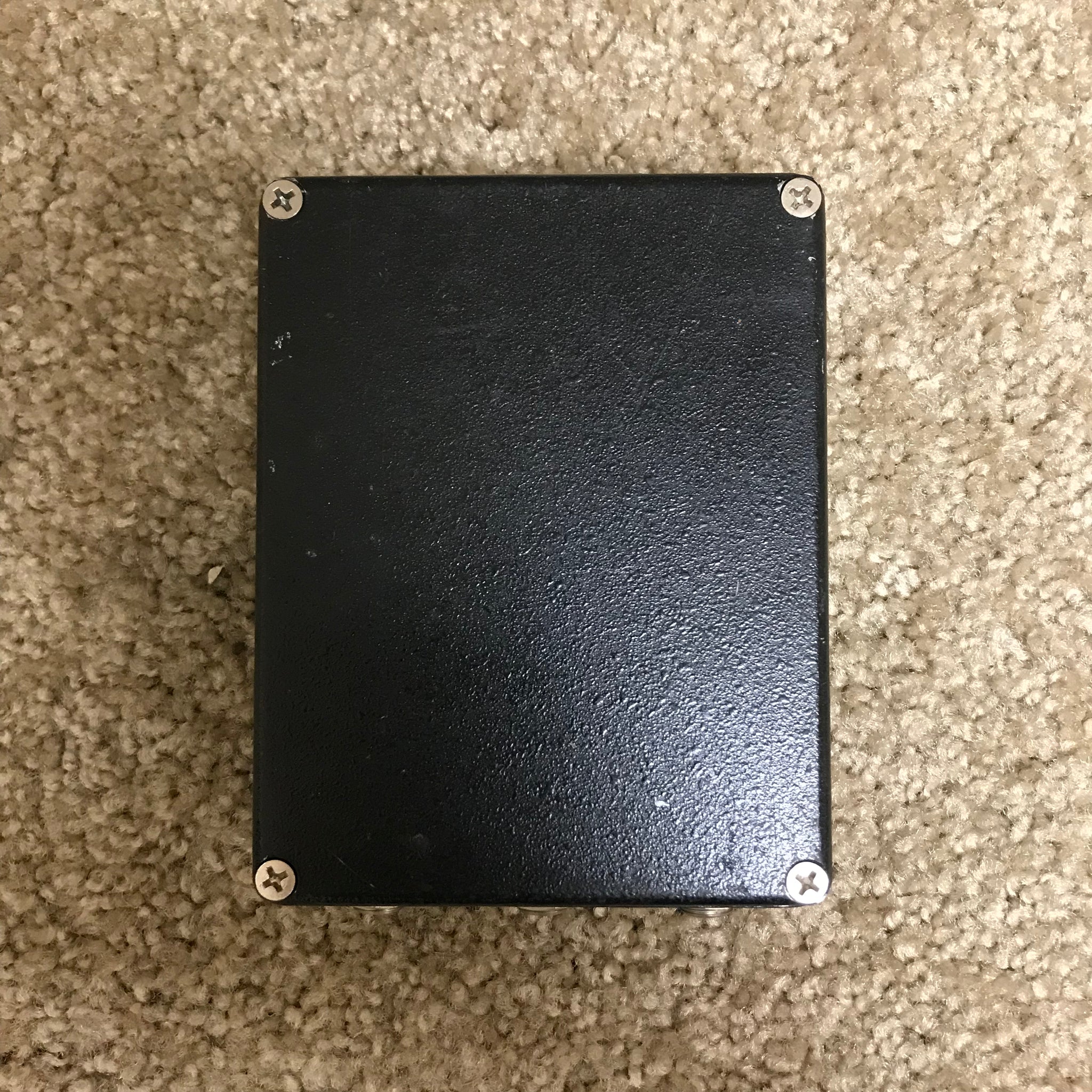

Rapco DB-100 Direct Box

Condition: Good

This DI box shows scratches around its entirety but does not show any major signs of mistreatment. All inputs and outputs work as expected.

The DB100 is a passive direct box that allows you to take a Hi-Z instrument and turn it in to a Lo-Z line out. A special jack for ground lift eliminates 60 cycle hum.

Features:

  • Ground lift eliminates 60 cycle hum
  • Heavy duty steel box
  • High performance Rapco DBT transformer
  • High quality wiring

Specs:

  • Input Impedance: Greater than 1000 ohm @ 1kHz (150 ohm Nominal)
  • Maximum Input Level: 0 dBV @ 20 Hz +2 @ 30 Hz +4 @ 50 Hz (for 1% THD)

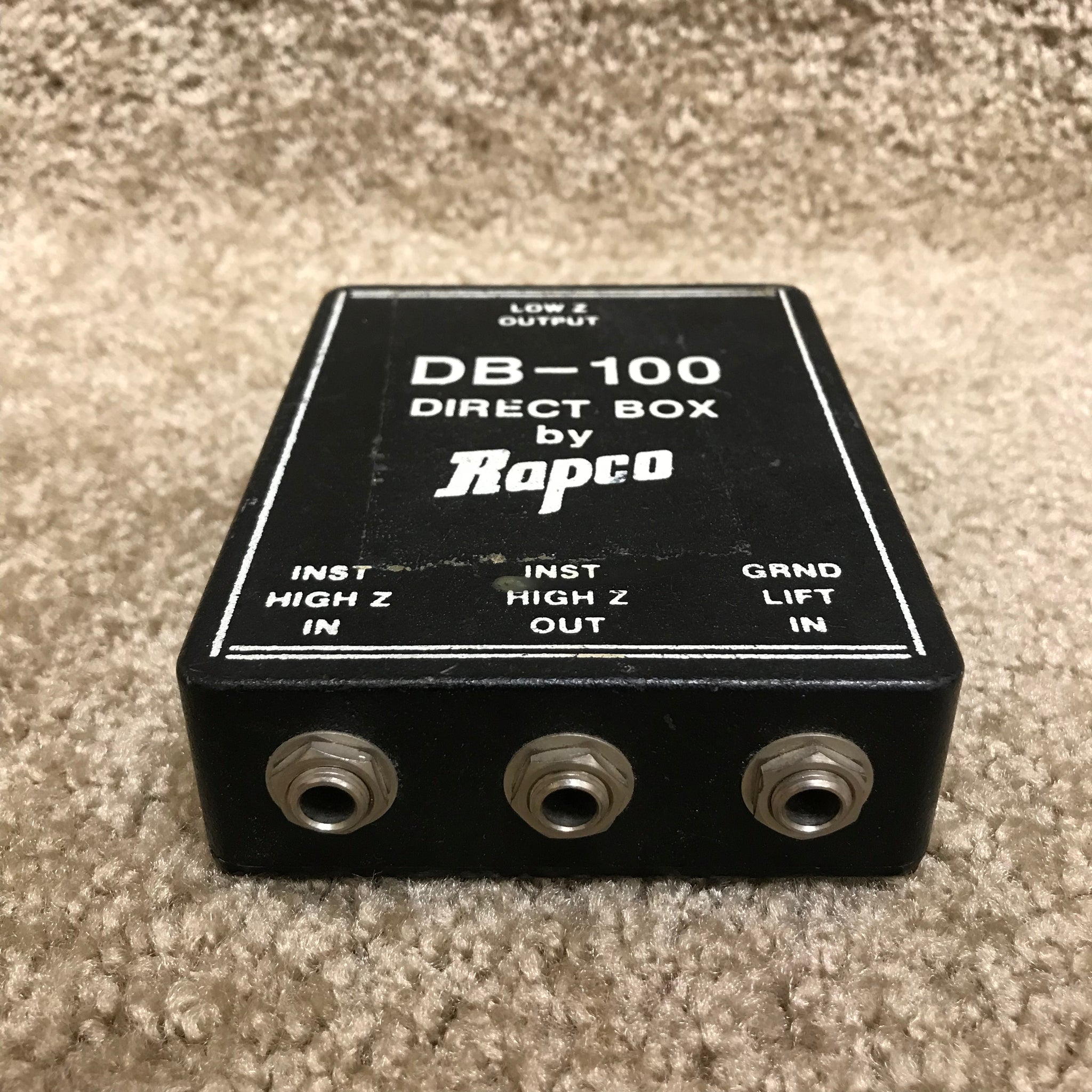

  • Input Connectors: Two Parallel and one Ground Lift In 1/4"

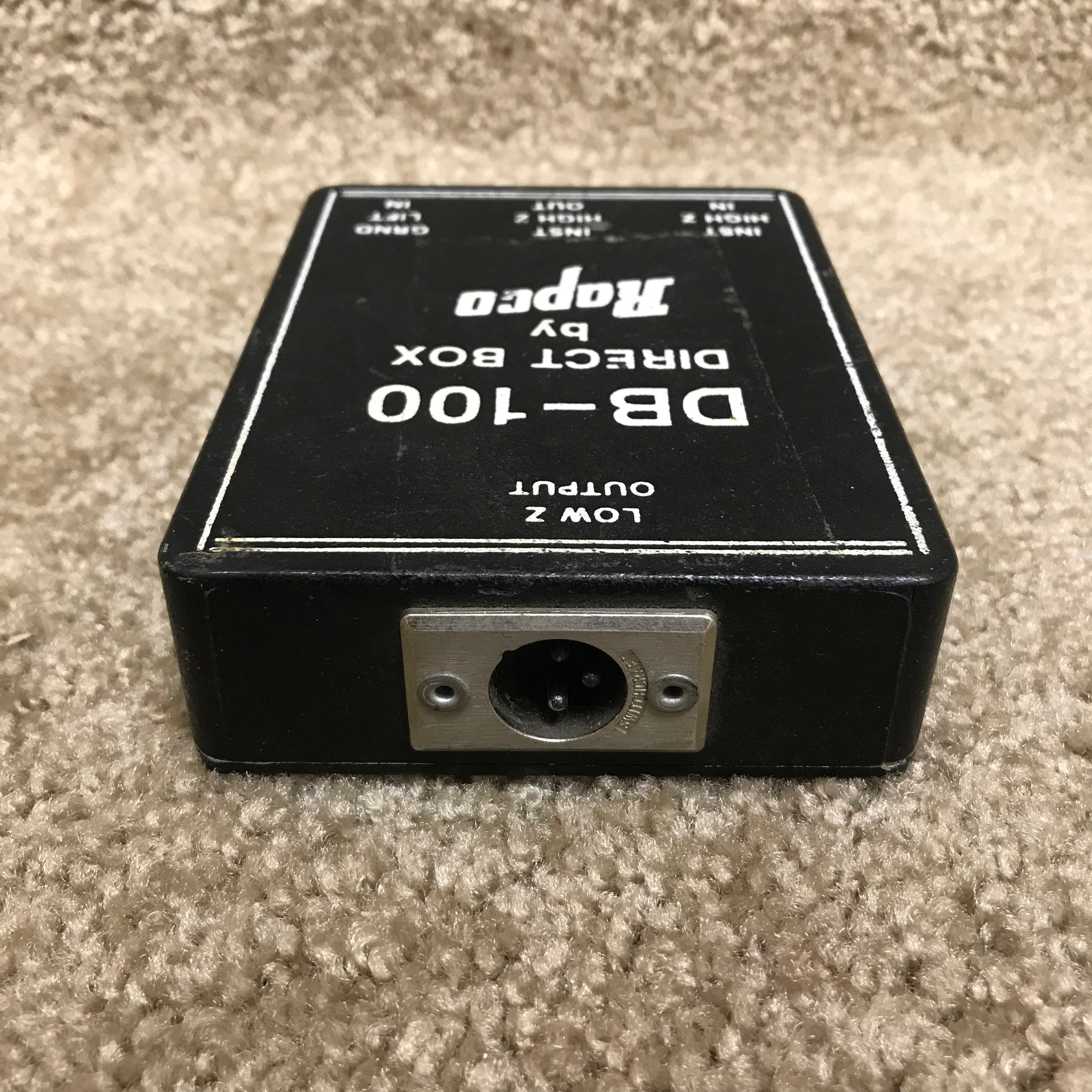

  • Output Connector: 3-pin male XLR
  • Output Impedance: > 200 ohm @ 1kHz
  • Distortion (THD): > .05% @ -40 dBV output
  • Frequency Response: 20Hz to 20kHz, +/-5dB @ -20 dBV output
